24' LEGEND SO

BIKES HAVE ARRIVED AND SHIP OUT 7/29::: NEXT BATCH ARRIVAL END OF AUGUST!!!!!

The 24" LEGEND redefines high-performance E-biking with a 72V 35AH Samsung 50S dual-battery system supporting a 3,000W BAFANG rear hub motor and a 60A controller delivering explosive power and speeds capeable of over 28 MPH. And we had to install some 220MM rotors for the ultimate stopping power. Unlike most competitors running oversized 26" wheels, the LEGEND is purpose-built around 24" fat tires for superior stability,  improved acceleration, enhanced torque delivery, and greater rider confidence at high speeds. Combined with industry-leading suspension and our innovative frame-mounted battery system desigend to combat the wobble, the LEGEND is engineered to dominate where others simply ride.

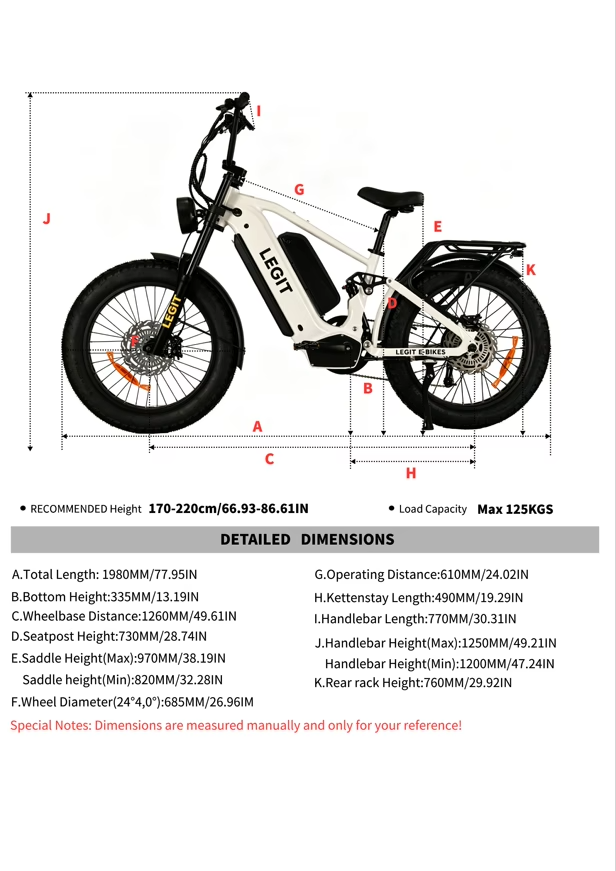

Bike Specifications

Frame: 6061 Aluminum Alloy Frame

Fork: Exsho hydraulic fork 120mm travel 38mm reinforced inner tube, lockout and preload

Shock: Rear DNM AO-8RC air shock, 210*53mm

Headset: NECO Brand Headset

Stem: ALU Stem 22.2*28.6mm

Handle Bar: ALU BMX handle bar 740mm width

Grips: Rubber grips

Shifter: X5 Trigger 9 speed shifter

Derailleur: SRAM X5 9 speed derailleur

Cassette Sprocket: SRAM 11-34T

Crank Set: Double Wall ALU chain wheel, 56T 170MM

Pedals: ALU with reflector

Brake Levers: KTET Hydraulic Brake lever with cut off function 4 Piston

Rotors: 220mm 2.8mm thick

Motor: Bafang H650 72V 3000W rear hub motor, Peak 5000W peak torque 200N.M. Canbus system

Battery: 72V 25AH+10AH Samsung 50S Lithium Battery with dual balancer

Display: Bafang DP.C010 LCD Display

Charger: 84V 4AMP smart charger UL

Throttle: Twist half throttle

Light: LED headlight with horn and turn signal light functions

Rim: Strengthened Double wall ALU rim with steel spokes 13G front 10G rear
