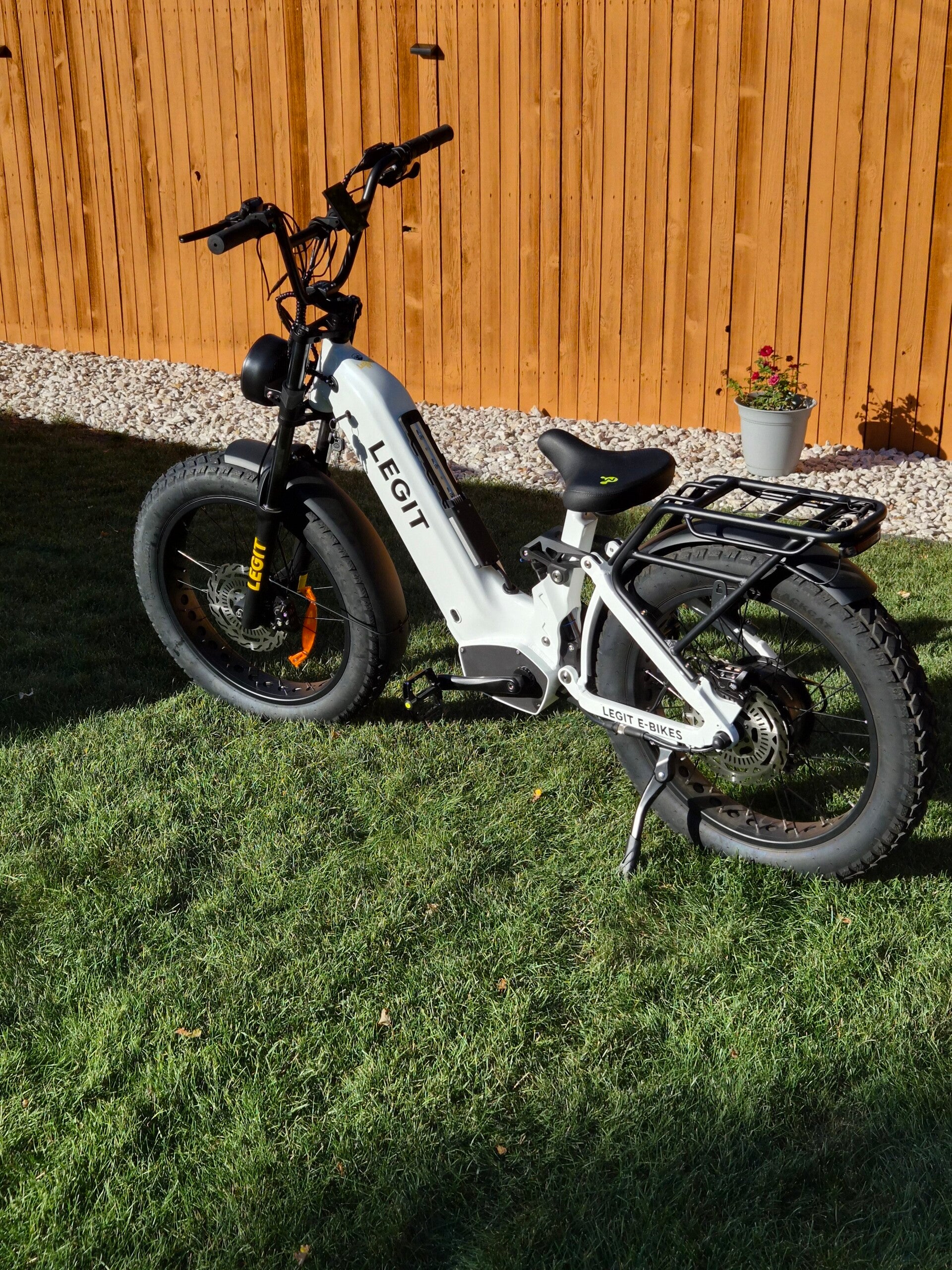

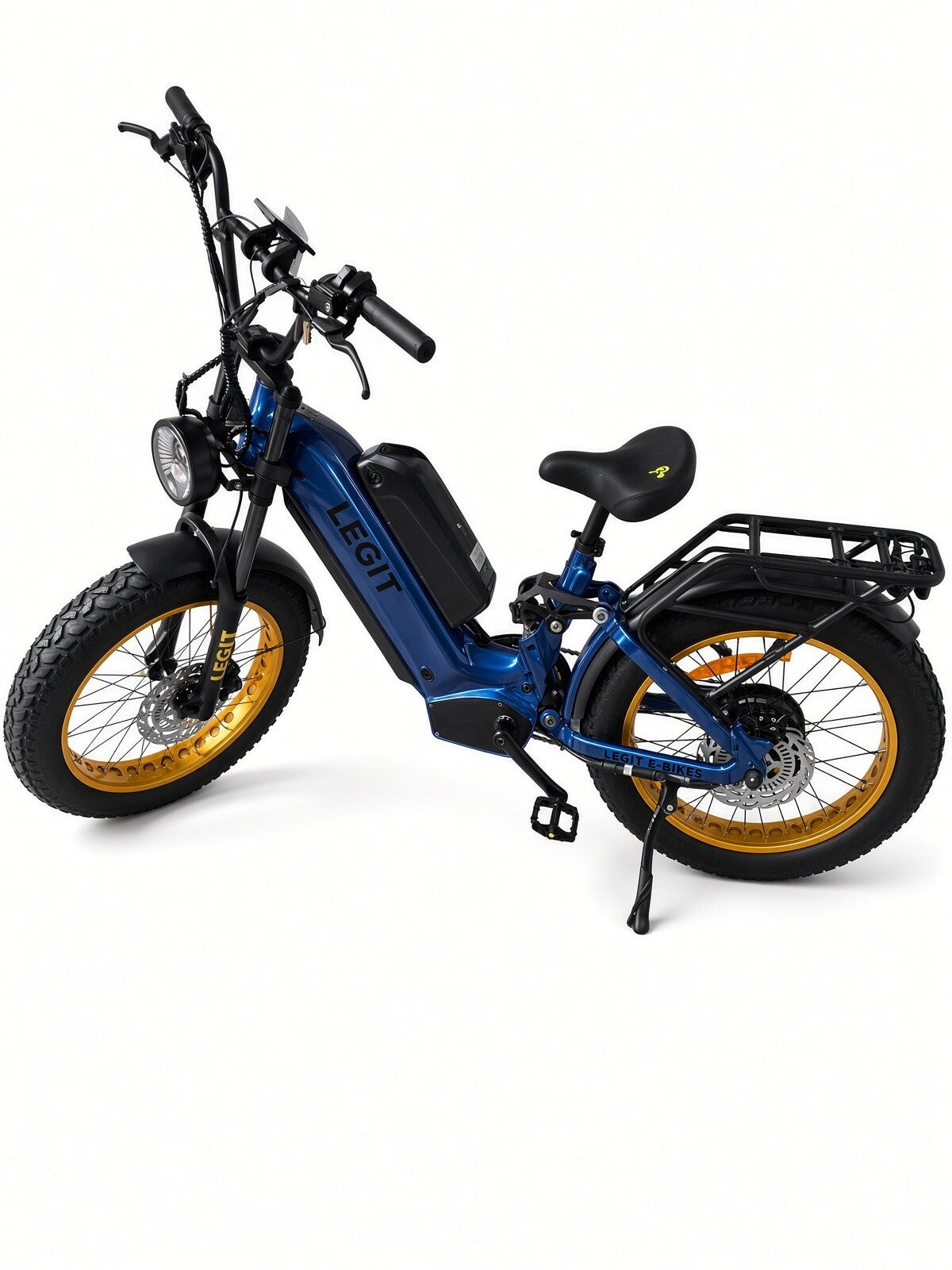

Legend 24" ST

Step-thru · 24" · Same machine. Easier on, easier off.

The Legend powertrain in a step-thru chassis — 3,000W Bafang, 60A controller, dual frame batteries, 220mm rotors. Built for riders who want the planted 24" geometry without swinging a leg over a top tube.

The point of this bike

The ST stands alone in the 24" class: full Legend geometry, dual-crown fork, and the same 220mm four-piston stoppers, with a step-thru that actually fits real riders.

Both packs use Sunpower 50SE high discahrge cells on every model. Same 60A controller. Same Bafang torque sensor you can actually use.

Battery72V 25Ah + 10Ah Sunpower 50SE, dual balancer Wheels 24 × 4 fat, Frame 6061 aluminum alloy Fork Exsho dual-crown hydraulic, 120mm, 38mm stanchions, lockout + preload Rear shock DNM AO-8RC air, Brakes KTET 4-piston hydraulic with motor cut off Rotors 220mm × 2.8mm Drivetrain SRAM X5 9-speed trigger + derailleur, 11–34T Crank Double-wall aluminum, 56T × 170mm Handlebar Aluminum BMX, 740mm Seatpost Dropper post, DDK saddle Tires Blackcat fat Motor Bafang H650 72V 3000W hub, 5000W peak, 200Nm, CANbus Controller 60A Bafang Display Bafang DP.C010 LCD Throttle Half-twist Lights LED headlight with horn and turn signals Charger 84V 4A smart charger, UL Rims Double-wall aluminum, 13G front / 10G rear spokes
